T/CC

Ducted Type Axial Ventilation Fan

T/CC SERIES:
Industrial
Axial
Ducted Type

General Description

T/CC series axial fans are especially used in cooling and ventilation systems of industrial and commercial buildings with high flow rates and relatively low pressure losses. There are 16 different models with diameters starting from 400mm up to 1120mm. The operating range is between -20°C and +50°C in clean air conditions.

Structure

Its body is made of galvanized sheet metal; impeller material is made of aluminum.

Motor

Motor type is TEFC; energy class is IE2-IE3. Motor insulation class is F and protection class is IP55.

Other versions

T/CC-ATX series starting from 450mm diameter up to 1000mm diameter.

T/CC-SHT series 450mm diameter and above models

Special production option suitable for the desired flow and pressure; aluminum and plastic impeller, double speed motor as options.

Accessories

Three-phase frequency converter (T/TPFC)

Protection Guard (T/CCr)

Axial Support Feet (T/CCst)

Counter Flange Flat (T/CCf)

Connector (T/CCga)

Antivibration mounts (T/CCvf)

Antivibration spring (T/CCvs)

Control Panel (T/SC)

Cylindrical duct type silencer (T/CCsa)

Technical Specifications

Article	Model	Ø	U	RPM	U	P	Pm	In	IP/CI	Min. Max.	Q	Lw
Article	Model	(mm)	T/M	RPM	(V-Hz)	(n°)	(kW)	(A)	IP/CI	(T°)	(m3/h)	dB(A)
TCC0000	T/CC 400-5-25	400	T	1450	380V-50Hz	4	0,37	1,20	55/F	-20/50	2895	66
TCC0001	T/CC 450-5-25	450	T	1456	380V-50Hz	4	0,55	1,60	55/F	-20/50	4180	69
TCC0002	T/CC 500-5-25	500	T	1453	380V-50Hz	4	0,55	1,60	55/F	-20/50	5845	72
TCC0003	T/CC 560-5-25	560	T	1466	380V-50Hz	4	0,75	2,10	55/F	-20/50	8150	75
TCC0004	T/CC 630-5-30	630	T	1465	380V-50Hz	4	1,10	2,80	55/F	-20/50	13480	80
TCC0005	T/CC 710-5-30	710	T	1472	380V-50Hz	4	1,50	3,70	55/F	-20/50	19210	83
TCC0006	T/CC 800-5-30	800	T	1459	380V-50Hz	4	2,20	5,30	55/F	-20/50	25560	85
TCC0007	T/CC 800-5-35	800	T	1463	380V-50Hz	4	3,00	6,40	55/F	-20/50	30940	89

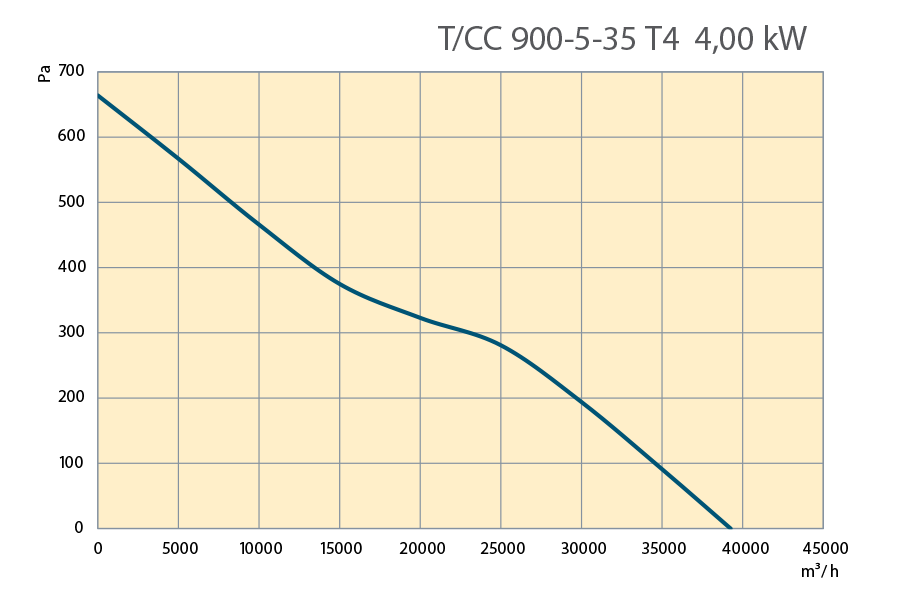

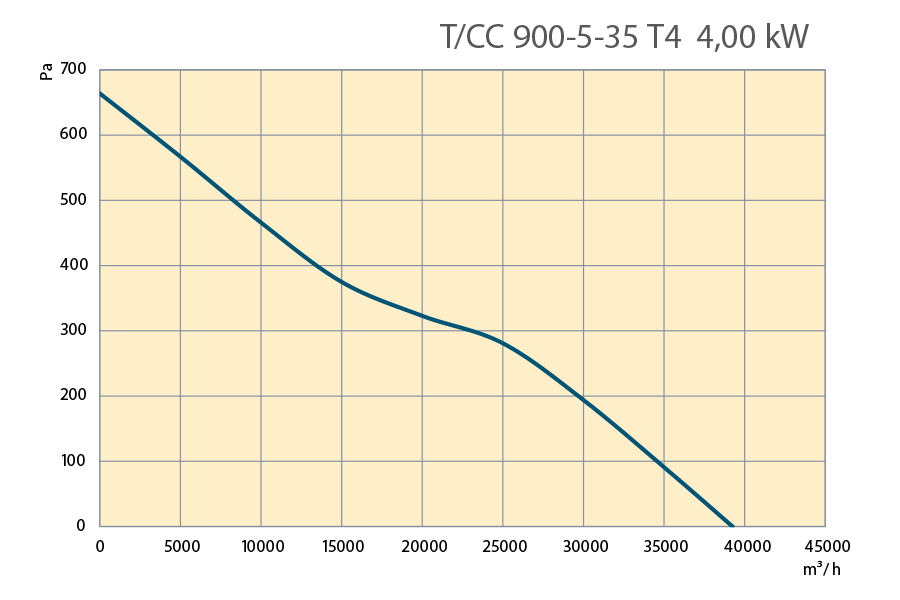

TCC0008	T/CC 900-5-35	900	T	1471	380V-50Hz	4	4,00	8,60	55/F	-20/50	39250	90

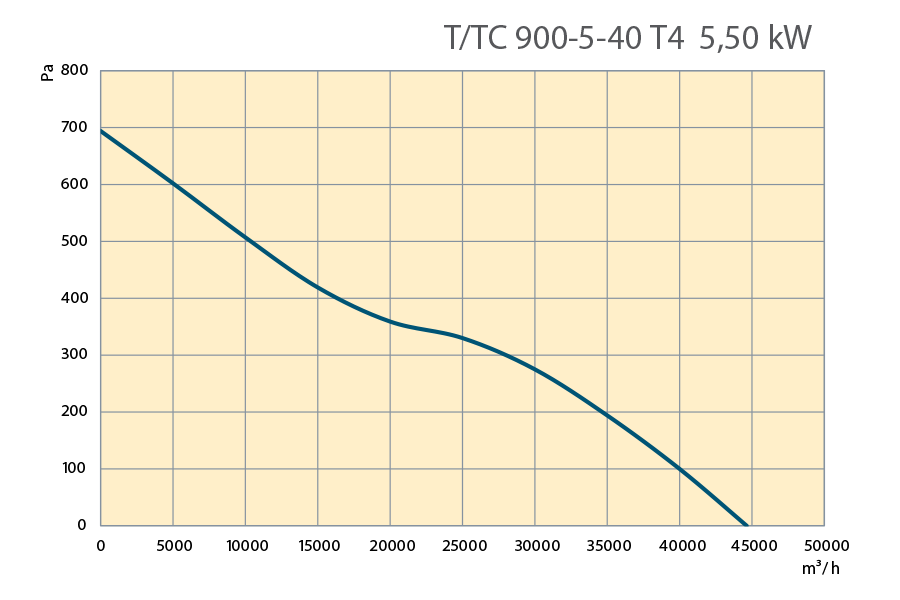

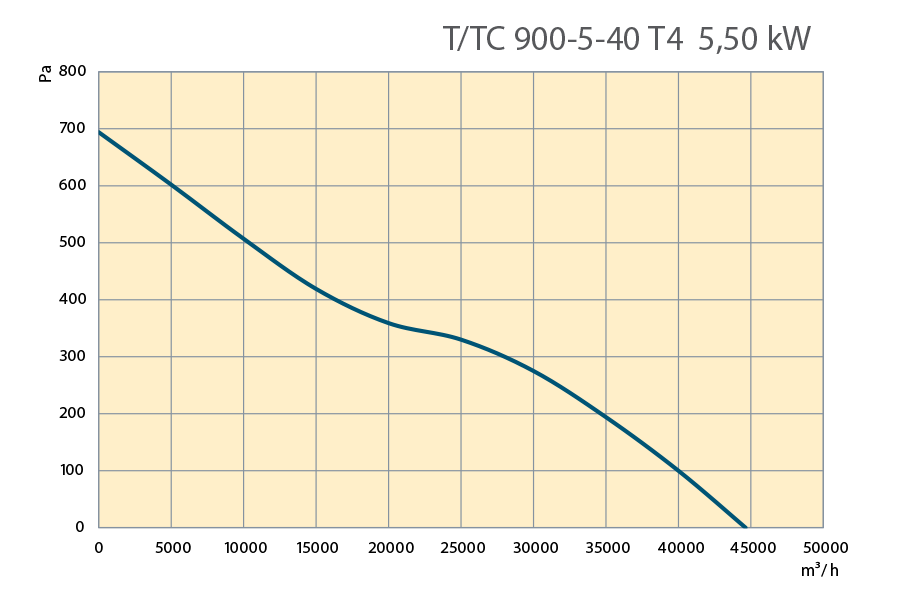

TCC0009	T/CC 900-5-40	900	T	1472	380V-50Hz	4	5,50	11,80	55/F	-20/50	44635	93

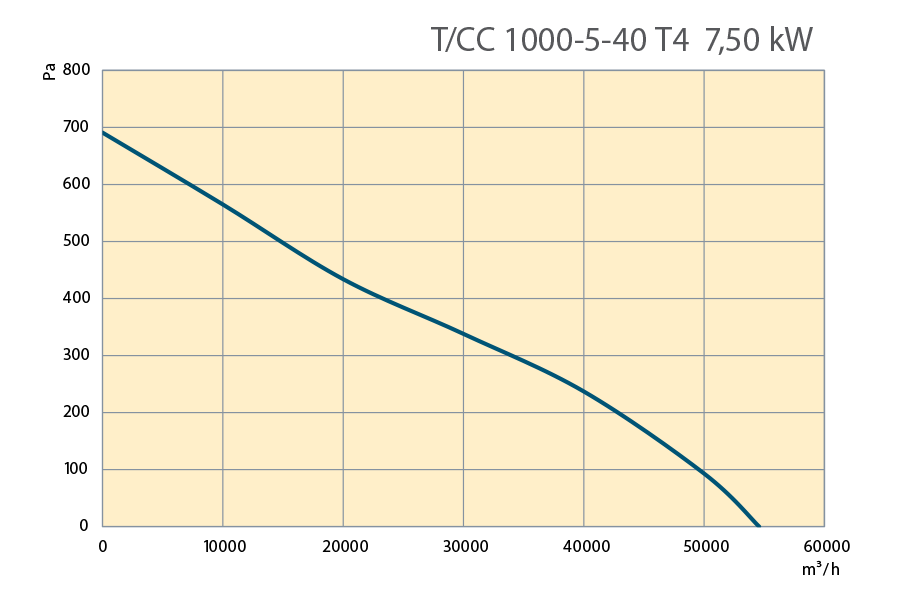

TCC00010	T/CC 1000-5-40	1000	T	1478	380V-50Hz	4	7,50	15,40	55/F	-20/50	54570	94
TCC00012	T/CC 900-8-40	900	T	1454	380V-50Hz	4	11,00	22,40	55/F	-20/50	46200	94
TCC00013	T/CC 1000-8-40	1000	T	1456	380V-50Hz	4	15,00	30,40	55/F	-20/50	62250	97
TCC00014	T/CC 1000-8-45	1000	T	1458	380V-50Hz	4	18,50	38,40	55/F	-20/50	69070	99
TCC00015	T/CC 1120-8-40	1120	T	1471	380V-50Hz	4	22, 00	44,40	55/F	-20/50	86620	100
TCC00016	T/CC 11120-8-45	1120	T	1474	380V-50Hz	4	30,00	57,30	55/F	-20/50	95270	102

Article	Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	N Delik (ad)
TCC0000	T/CC 400-5-25 T4 0,37 kW	400	480	320	30	11	8
TCC0001	T/CC 450-5-25 T4 0,55 kW	450	530	320	50	11	8
TCC0002	T/CC 500-5-25 T4 0,55 kW	500	580	320	70	11	8
TCC0003	T/CC 560-5-25 T4 0,75 kW	560	640	320	60	11	12
TCC0004	T/CC 630-5-30 T4 1,1 kW	630	710	420	45	11	12
TCC0005	T/CC 710-5-30 T4 1,5 kW	710	790	420	25	11	12
TCC0006	T/CC 800-5-30 T4 2,2 kW	800	880	420	50	11	16
TCC0007	T/CC 800-5-35 T4 3 kW	800	880	420	50	11	16
TCC0008	T/CC 900-5-35 T4 4 kW	900	980	520	0	11	16
TCC0009	T/CC 900-5-40 T4 5,5 kW	900	980	520	35	11	16
TCC00010	T/CC 1000-5-40 T4 7,5 kW	1000	1080	520	150	11	16
TCC00012	T/CC 900-8-40 T4 11 kW	900	980	520	75	11	16
TCC00013	T/CC 1000-8-40 T4 15 kW	1000	1080	520	180	11	16
TCC00014	T/CC 1000-8-45 T4 18,5 kW	1000	1080	520	250	11	16
TCC00015	T/CC 1120-8-40 T4 22 kW	1120	1200	520	250	11	16
TCC00016	T/CC 11120-8-45 T4 30 kW	1120	1200	520	300	11	16
