T/CC-ATEX SERIES:
Axial
Ducted Type
Exproof Motor
T/CC-ATX series exproof motor axial fans can be used as ATEX class Zone 1 /2 Group: IIA, IIB and IIC. There are 12 different models with diameters starting from 450mm up to 1000mm. The operating range is between -20°C and +50°C in clean air conditions.
Its body is made of galvanized sheet metal; impeller material is made of aluminum.
Motor type is TEFC; energy class is IE2. Motor insulation class is F and protection class is IP55.
Special production option suitable for the desired flow and pressure; aluminum and plastic impeller, double speed motor as options.
Three-phase frequency converter (T/TPFC)
Axial Support Feet (T/CCst)
Counter Flange Flat (T/CCf)
Connector (T/CCga)
Antivibration mounts (T/CCvf)
Antivibration spring (T/CCvs)
Control Panel (T/SC)
Cylindrical duct type silencer (T/CCsa)

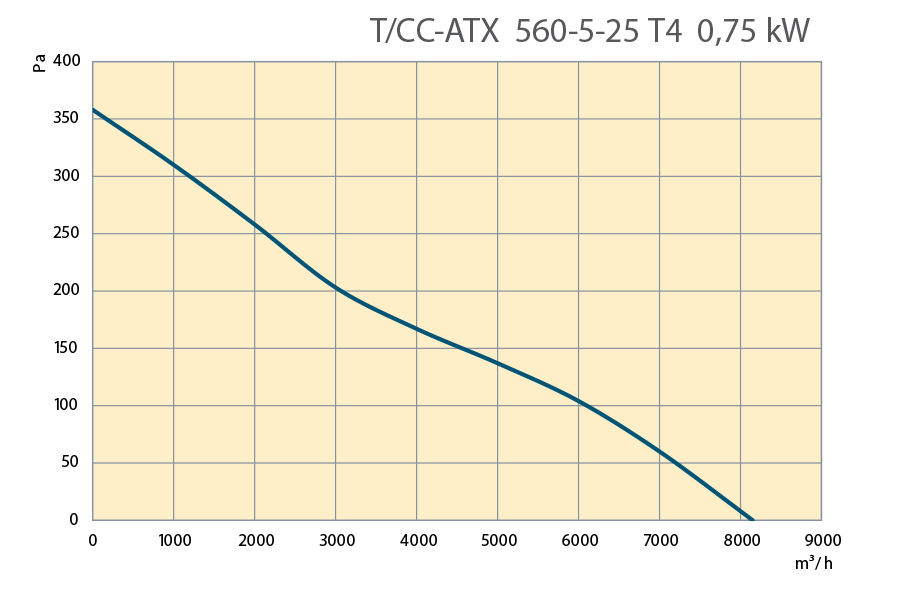

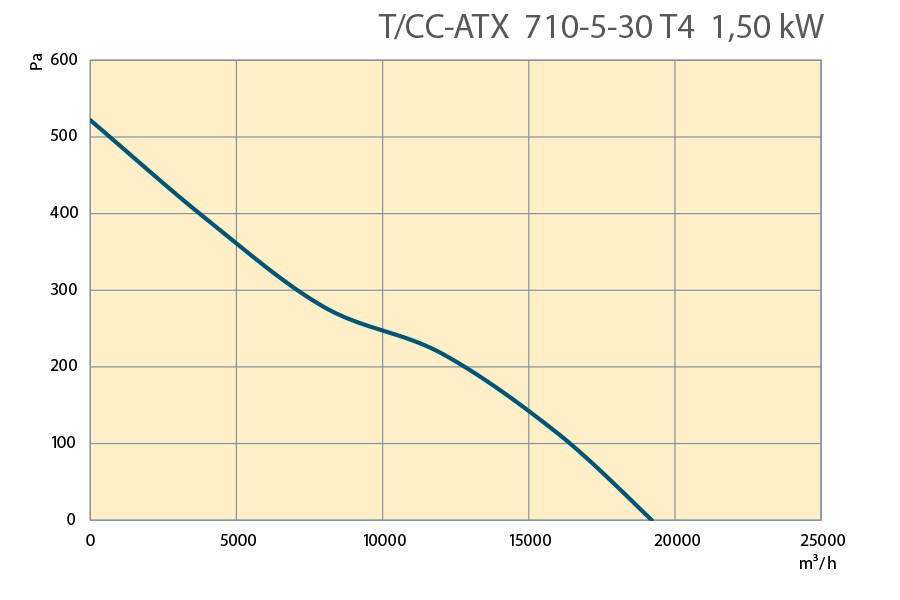

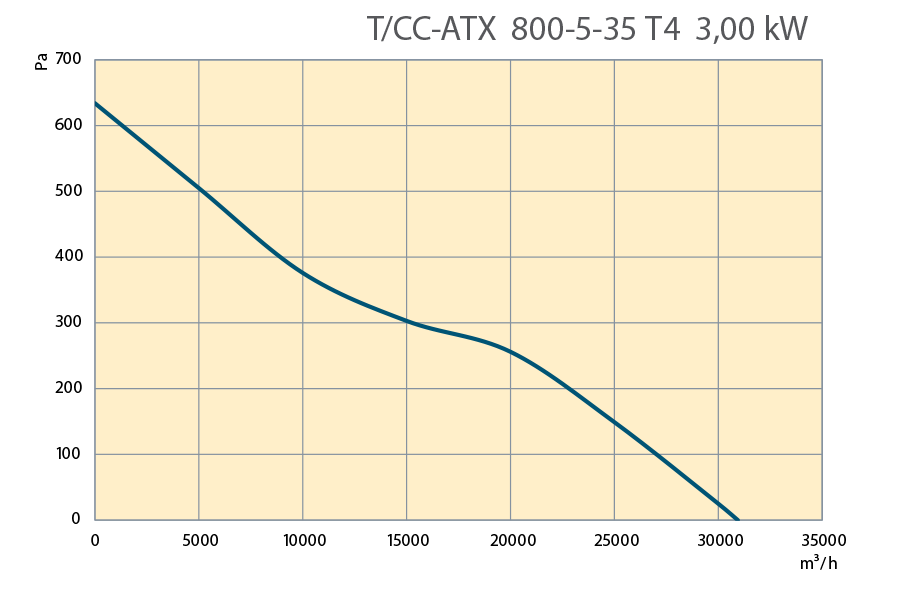

| Article | Model | Ø | U | RPM | U | P | Pm | In | IP/CI | Min. Max. |
Q | Lw |
| (mm) | T/M | (V-Hz) | (n°) | (kW) | (A) | (T°) | (m3/h) | dB(A) | ||||
| TCCAT00 | T/CC-ATX 450-5-25 | 450 | T | 1456 | 380V-50Hz | 4 | 0,55 | 1,60 | 55/F | -20/50 | 4180 | 69 |
| TCCAT01 | T/CC-ATX 500-5-25 | 500 | T | 1453 | 380V-50Hz | 4 | 0,55 | 1,60 | 55/F | -20/50 | 5845 | 72 |
| TCCAT02 | T/CC-ATX 560-5-25 | 560 | T | 1466 | 380V-50Hz | 4 | 0,75 | 2,10 | 55/F | -20/50 | 8150 | 75 |
| TCCAT03 | T/CC-ATX 630-5-30 | 630 | T | 1465 | 380V-50Hz | 4 | 1,10 | 2,80 | 55/F | -20/50 | 13480 | 80 |
| TCCAT04 | T/CC-ATX 710-5-30 T4 | 710 | T | 1472 | 380V-50Hz | 4 | 1,50 | 3,70 | 55/F | -20/50 | 19210 | 83 |
| TCCAT05 | T/CC-ATX 800-5-30 | 800 | T | 1459 | 380V-50Hz | 4 | 2,20 | 5,30 | 55/F | -20/50 | 25560 | 85 |
| TCCAT06 | T/CC-ATX 800-5-35 | 800 | T | 1463 | 380V-50Hz | 4 | 3,00 | 6,40 | 55/F | -20/50 | 30940 | 89 |
| TCCAT07 | T/CC-ATX 900-5-40 | 900 | T | 1471 | 380V-50Hz | 4 | 4,00 | 8,60 | 55/F | -20/50 | 39250 | 90 |
| TCCAT08 | T/CC-ATX 900-5-40 | 900 | T | 1472 | 380V-50Hz | 4 | 5,50 | 11,80 | 55/F | -20/50 | 44635 | 93 |
| TCCAT09 | T/CC-ATX 1000-5-40 | 1000 | T | 1478 | 380V-50Hz | 4 | 7,50 | 15,40 | 55/F | -20/50 | 54570 | 94 |
| TCCAT10 | T/CC-ATX 900-8-40 | 900 | T | 1454 | 380V-50Hz | 4 | 11,00 | 22,40 | 55/F | -20/50 | 46200 | 94 |
| TCCAT11 | T/CC-ATX 1000-8-40 | 1000 | T | 1456 | 380V-50Hz | 4 | 15,00 | 30,40 | 55/F | -20/50 | 62250 | 97 |
| Article | Model | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
N Delik (ad) |
||||||||
| TCCAT00 | T/CC-ATX 450-5-25 T4 0,55 kW | 450 | 530 | 320 | 50 | 11 | 8 | ||||||||
| TCCAT01 | T/CC-ATX 500-5-25 T4 0,55 kW | 500 | 580 | 320 | 70 | 11 | 8 | ||||||||
| TCCAT02 | T/CC-ATX 560-5-25 T4 0,75 kW | 560 | 640 | 320 | 60 | 11 | 12 | ||||||||
| TCCAT03 | T/CC-ATX 630-5-30 T4 1,1 kW | 630 | 710 | 420 | 45 | 11 | 12 | ||||||||
| TCCAT04 | T/CC-ATX 710-5-30 T4 1,5 kW | 710 | 790 | 420 | 25 | 11 | 12 | ||||||||
| TCCAT05 | T/CC-ATX 800-5-30 T4 2,2 kW | 800 | 880 | 420 | 50 | 11 | 16 | ||||||||
| TCCAT06 | T/CC-ATX 800-5-35 T4 3 kW | 800 | 880 | 420 | 50 | 11 | 16 | ||||||||
| TCCAT07 | T/CC-ATX 900-5-40 T4 4 kW | 900 | 980 | 520 | 0 | 11 | 16 | ||||||||
| TCCAT08 | T/CC-ATX 900-5-40 T4 5,5 kW | 900 | 980 | 520 | 35 | 11 | 16 | ||||||||
| TCCAT09 | T/CC-ATX 1000-5-40 T4 7,5 kW | 1000 | 1080 | 520 | 150 | 11 | 16 | ||||||||
| TCCAT10 | T/CC-ATX 900-8-40 T4 11 kW | 900 | 980 | 520 | 75 | 11 | 16 | ||||||||
| TCCAT11 | T/CC-ATX 1000-8-40 T4 15 kW | 1000 | 1080 | 520 | 180 | 11 | 16 | ||||||||
