Industrial Ventilation Fans

T/AXM

Ducted Type Radial Ventilation Fan

T/AXM SERIES:
Industrial
Radial
Ducted Type
Mixed Air Flow

Dynair T-AXM Industrial Ducted Type Radial Ventilation Fan

General Description

T/AXM series are duct type mixed flow radial fans with low energy consumption, advantage of direct and easy mounting to the duct. It has 5 different models with diameters from 100 mm to 200 mm. The operating range is between -20°C and +50°C in clean air conditions.

Structure

Its body and impeller material are made of plastic.

Motor

Motor type is external rotor motor. Motor insulation class is F and protection class is IP44

Technical Specifications

Article Model Ø U RPM U P Pm In IP/CI Min.
Max.
Q Lw
(mm) T/M (V-Hz) (n°) (kW) (A) (T°) (m3/h) dB(A)
TAM0000 T/AXM 100 100 M 2460 230V-50Hz 2 54,00 2,10 44/F -20/50 234 41
TAM0001 T/AXM 125 125 M 2560 230V-50Hz 2 56,00 2,80 44/F -20/50 337 46
TAM0002 T/AXM 150 150 M 2490 230V-50Hz 2 75,00 3,70 44/F -20/50 504 48
TAM0003 T/AXM 160 160 M 2490 230V-50Hz 2 75,00 2,80 44/F -20/50 560 49
TAM0004 T/AXM 200 200 M 2410 230V-50Hz 2 111,00 3,70 44/F -20/50 1012 54


Fan Dimensions

Dynair T-AXM Industrial Ducted Type Radial Ventilation Fan Dimensions
Article Model A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm
TAM0000 T/AXM 100 M2 54 W 96 307 215 60 80
TAM0001 T/AXM 125 M2 56 W 121 206 215 60 80
TAM0002 T/AXM 150 M2 75 W 146 291 242 60 80
TAM0003 T/AXM 160 M2 75 W 456 271 242 60 80
TAM0004 T/AXM 200 M2 111 W 191 300 263 94 100


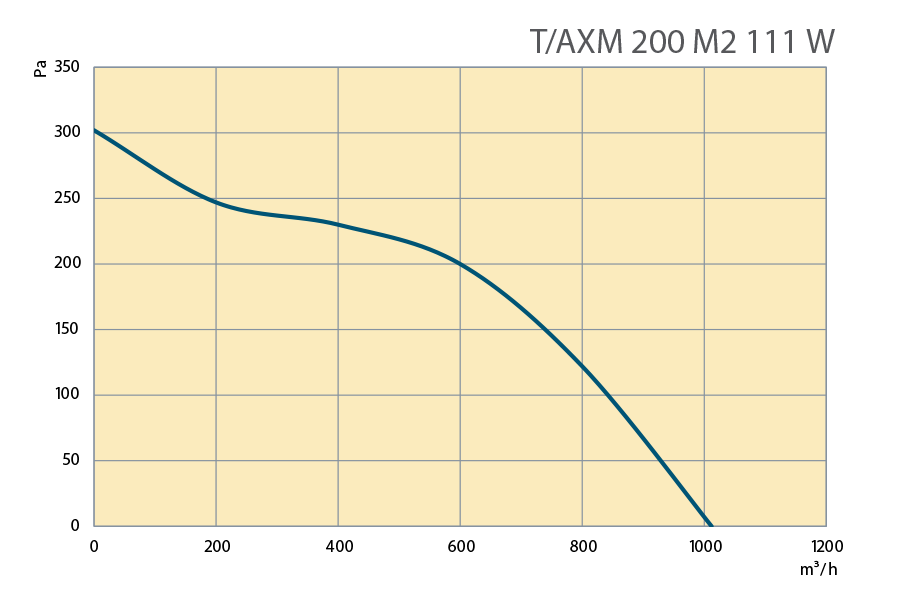

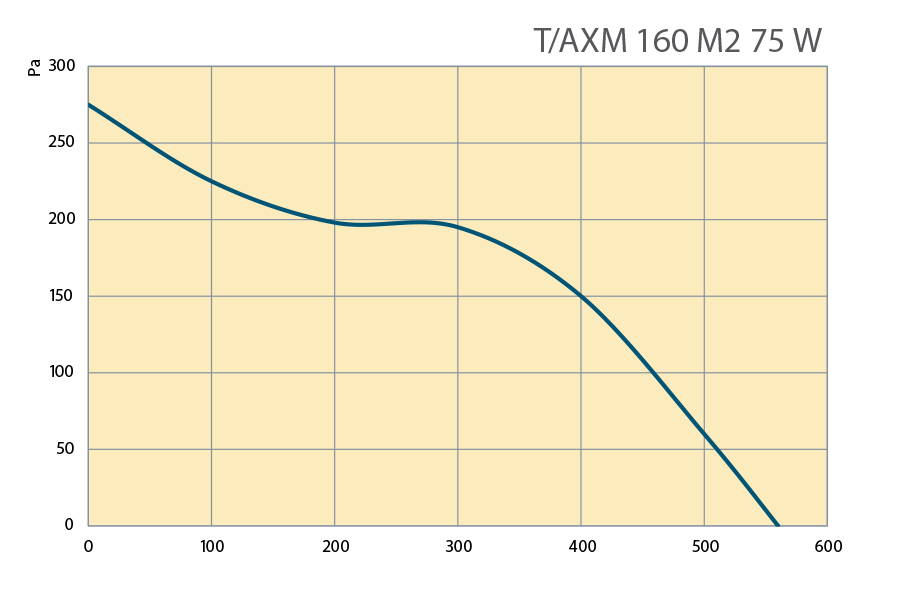

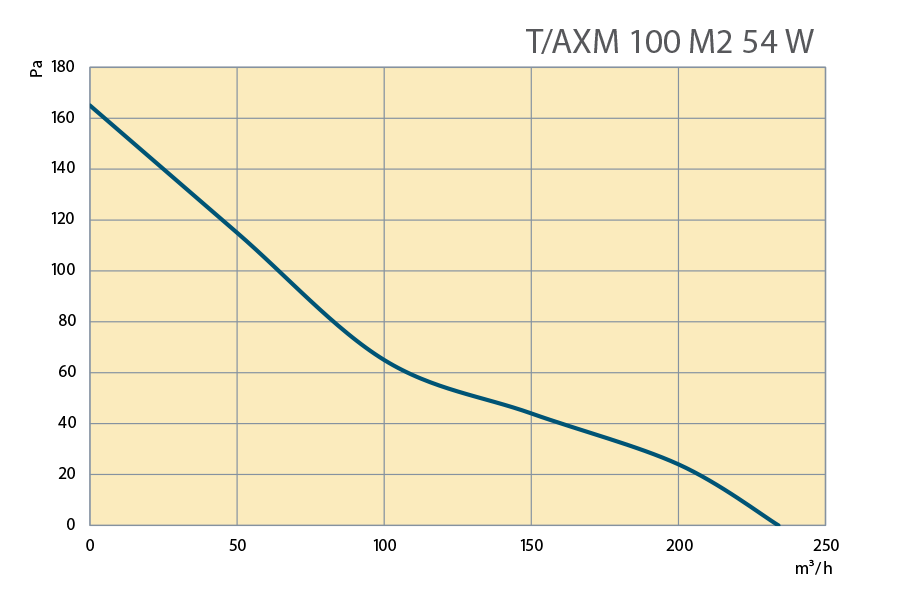

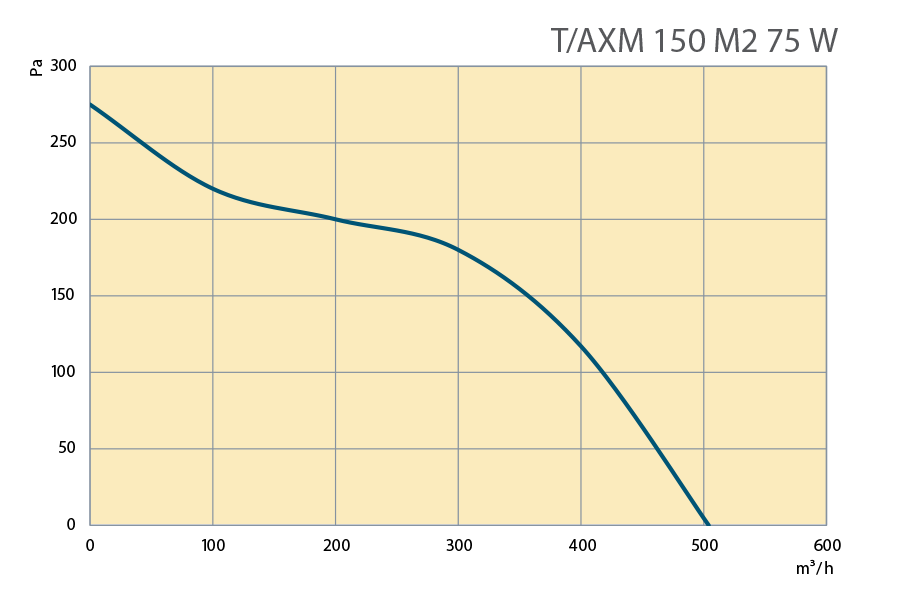

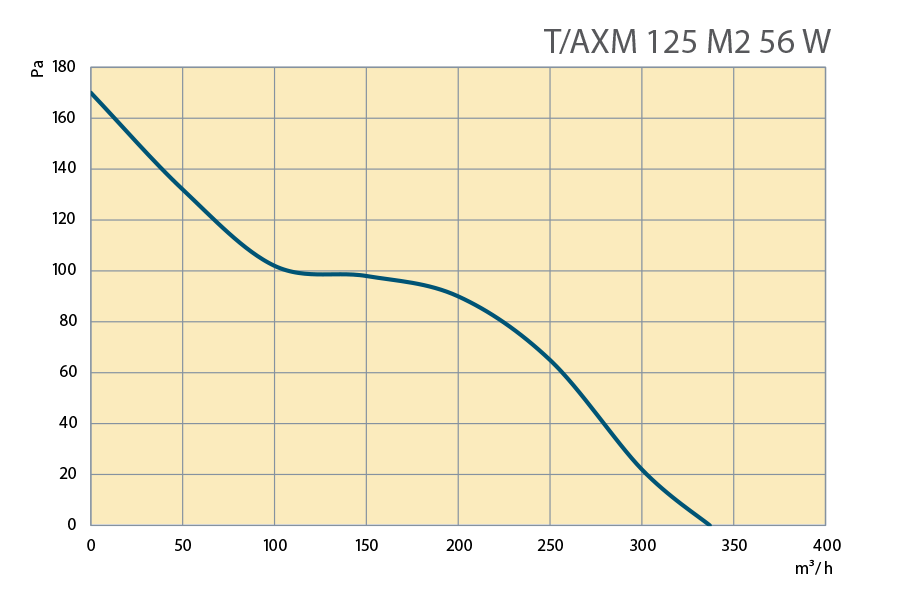

Performance Curves

Performance Curves
Performance Curves
Performance Curves
Performance Curves
Performance Curves

Documents

Catalogue

User Manual

CE Certificate
