Domestic Ventilation Fans

FLUX

Ducted Type Axial Ventilation Fan

FLUX SERIES:
Domestic
Radial
Ducted Type

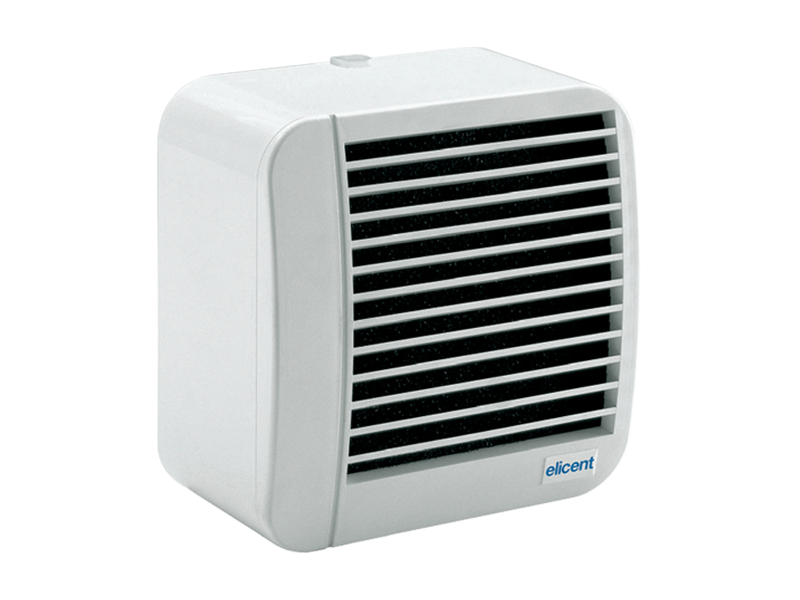

Elicent Flux Ducted Type Axial Ventilation Fan

General Description

With Back draught shutter
With Central outlet
Protection against overheating
Removable, easy-to-clean filterbr /> It is made of impact resistant, antistatic material

Complies with ErP Directive 2009/125/CE and EU Regulation 1253/2014.

Technical Specifications

Model Protection Class Kanal Ø m³/h l/s Pa W dB(A)*
Flux 100 IPX4 100 90 25 124 30 44
Flux 250 IPX4 100 221 56 195 29 52
Flux 250 IPX4 120 232 64 195 29 52
*dB(A) distance of 3 meters, 230V-50Hz.


Fan Dimensions

Elicent Flux Ducted Type Axial Ventilation Fan Dimensions
Model A
(mm)
B
(mm)
C
(mm)
D
(mm)
ØE
(mm)
F
(mm)
Weight
kg
Flux 100 160 160 119 89 97 30 0.8
Flux 250 Ø 100 210 210 156 131 97 25 1.8
Flux 250 Ø 120 210 210 156 131 119 28 1.8


Documents

Catalogue

User Manual

CE Certificate
