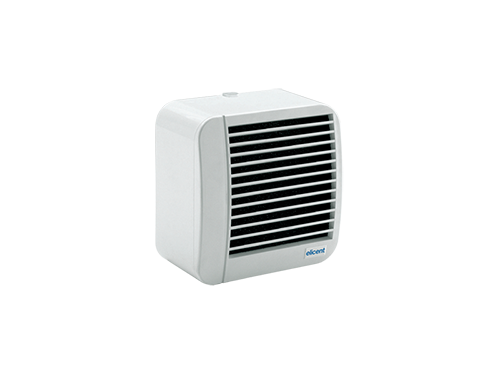

ELPREX SERIES:
Domestic
Radyal
Ducted Type
Innovative design with flat front cover and lateral intake
Suitable for surface or built-in installation (wall/ceiling mounted)
Powerful centrifugal duct fan Ø100 mm with decentralized outlet
Provided with removable filter in PP washable in dishwasher and with back-draught shutters
Complies with ErP Directive 2009/125/CE and EU Regulation 1253/2014.
| Model | Protection Class | Kanal Ø | m³/h | l/s | Pa | W | dB(A)* | |||||||
| Elprex | IPX4 | 100 | 221 | 61 | 208 | 29 | 41 | |||||||
| Elprex-2 Hızlı | IPX4 | 100 | 221 | 61 | 15.82/11.1 | 38.8/8.2 | 41/15.8 | |||||||
| *dB(A) distance of 3 meters, 230V-50Hz. | ||||||||||||||
| Model | A (mm) |
B (mm) |
C (mm) |
ØD (mm) |
ØE (mm) |
F (mm) |
G (mm) |
Weight kg |
|||||||||
| Elprex | 280 | 280 | 135 | 120 | 99 | 16 | 58 | 2.8 | |||||||||
