T/AC-A SERIES:
Industrial
Axial
Wall Type

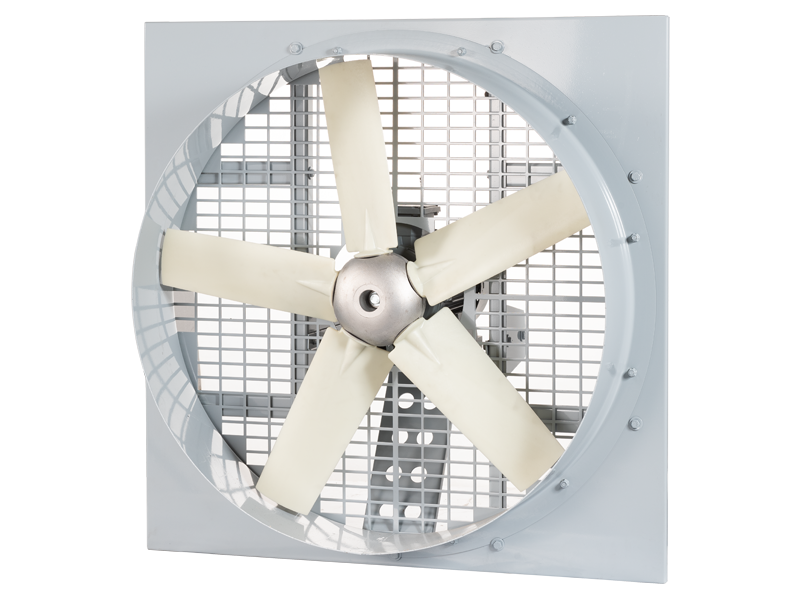

T/AC-A series axial fan models are used as wall type in ventilation systems of residential, commercial and industrial buildings. It has 11 different models with diameters from 400 mm to 1000 mm. The operating range is between -20°C and +50°C in clean air conditions.
Its body and protection guard are made of galvanized sheet metal; the coating is electrostatic powder painted. Impeller material is made of plastic.
Motor type is TEFC; energy class is IE2-IE3. Motor insulation class is F and protection class is IP55
Special production option suitable for the desired flow and pressure; aluminum and plastic impeller, double speed motor as options
| Article | Model | Ø | U | RPM | U | P | Pm | In | IP/CI | Min. Max. |
Q | Lw |
| (mm) | T/M | (V-Hz) | (n°) | (kW) | (A) | (T°) | (m3/h) | dB(A) | ||||
| TAC0000 | T/AC-A 400-5-25 | 400 | T | 1450 | 380V-50Hz | 4 | 0,37 | 1,20 | 55/F | -20/50 | 2895 | 66 |
| TAC0001 | T/AC-A 450-5-25 | 450 | T | 1456 | 380V-50Hz | 4 | 0,55 | 1,60 | 55/F | -20/50 | 4180 | 69 |
| TAC0002 | T/AC-A 500-5-25 | 500 | T | 1453 | 380V-50Hz | 4 | 0,55 | 1,60 | 55/F | -20/50 | 5845 | 72 |
| TAC0003 | T/AC-A 560-5-25 | 560 | T | 1466 | 380V-50Hz | 4 | 0,75 | 2,10 | 55/F | -20/50 | 8150 | 75 |
| TAC0004 | T/AC-A 630-5-30 | 630 | T | 1465 | 380V-50Hz | 4 | 1,10 | 2,80 | 55/F | -20/50 | 13480 | 80 |
| TAC0005 | T/AC-A 710-5-30 | 710 | T | 1472 | 380V-50Hz | 4 | 1,50 | 3,70 | 55/F | -20/50 | 19210 | 83 |
| TAC0006 | T/AC-A 800-5-30 | 800 | T | 1459 | 380V-50Hz | 4 | 2,20 | 5,30 | 55/F | -20/50 | 25560 | 85 |
| TAC0007 | T/AC-A 800-5-35 | 800 | T | 1463 | 380V-50Hz | 4 | 3,00 | 6,40 | 55/F | -20/50 | 30940 | 89 |
| TAC0008 | T/AC-A 900-5-35 | 900 | T | 1471 | 380V-50Hz | 4 | 4,00 | 8,60 | 55/F | -20/50 | 39250 | 90 |
| TAC0009 | T/AC-A 900-5-40 | 900 | T | 1472 | 380V-50Hz | 4 | 5,50 | 11,80 | 55/F | -20/50 | 44635 | 93 |
| TAC00010 | T/AC-A 1000-5-40 | 1000 | T | 1478 | 380V-50Hz | 4 | 7,50 | 15,40 | 55/F | -20/50 | 54570 | 94 |
| Article | Model | A (mm) |
B (mm) |
C (mm) |
D (mm) |
||||||||
| TAC0000 | T/AC-A 400-5-25 T4 0,37 kW | 570 | 570 | 400 | 200 | ||||||||
| TAC0001 | T/AC-A 450-5-25 T4 0,55 kW | 610 | 610 | 410 | 200 | ||||||||
| TAC0002 | T/AC-A 500-5-25 T4 0,55 kW | 650 | 650 | 410 | 200 | ||||||||
| TAC0003 | T/AC-A 560-5-25 T4 0,75 kW | 680 | 680 | 410 | 200 | ||||||||
| TAC0004 | T/AC-A 630-5-30 T4 1,1 kW | 750 | 750 | 420 | 200 | ||||||||
| TAC0005 | T/AC-A 710-5-30 T4 1,5 kW | 830 | 830 | 450 | 200 | ||||||||
| TAC0006 | T/AC-A 800-5-30 T4 2,2 kW | 920 | 920 | 480 | 200 | ||||||||
| TAC0007 | T/AC-A 800-5-35 T4 3 kW | 920 | 920 | 480 | 200 | ||||||||
| TAC0008 | T/AC-A 900-5-35 T4 4 kW | 1020 | 1020 | 590 | 200 | ||||||||
| TAC0009 | T/AC-A 900-5-40 T4 5,5 kW | 1020 | 1020 | 590 | 300 | ||||||||
| TAC00010 | T/AC-A 1000-5-40 T4 7,5 kW | 1120 | 1120 | 700 | 300 | ||||||||
