T/FC SERIES:
Industrial
Radial
Roof Type
External Motor
Horizontal Discharge
T/FC series radial fans with external motor and horizontal discharge models are used as roof type in ventilation systems of industrial and commercial buildings. It is designed for easy installation, high efficiency, and low noise level. It has 7 different models with diameters from 280 mm to 560 mm. The operating range is between -20°C and +50°C in clean air conditions. Since the motor is outside of the airflow, the motor is extra protected from external factors. Because of its special structure, it is resistant to temperatures up to 80°C in continuous airflow.
Its body and protection guard are made of galvanized sheet metal; the coating is electrostatic powder painted. Impeller material is made of aluminum.
Motor type is TEFC; energy class is IE2-IE3. Motor insulation class is F and protection class is IP55. The motor outside of the airflow.
Vertical Discharge model is T/FCV.
Three-phase frequency converter (T/TPFC)
Back draft damper (T/BDD)
Rectangular duct type silencer (T/DKTS)

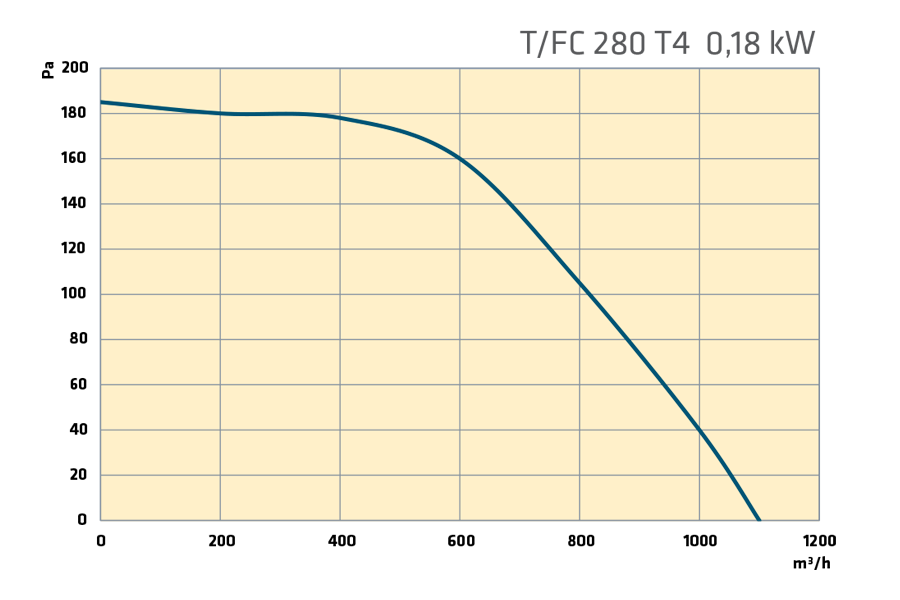

| Article | Model | Ø | U | RPM | U | P | Pm | In | IP/CI | Min. Max. |
Q | Lw |
| (mm) | T/M | (V-Hz) | (n°) | (kW) | (A) | (T°) | (m3/h) | dB(A) | ||||
| TFC0000 | T/FC 280 | 280 | T | 1450 | 380V-50Hz | 4 | 0,18 | 0,60 | 55/F | -20/50 | 1100 | 70 |
| TFC0001 | T/FC 315 | 315 | T | 1469 | 380V-50Hz | 4 | 0,25 | 0,90 | 55/F | -20/50 | 1600 | 73 |
| TFC0002 | T/FC 355 | 355 | T | 1471 | 380V-50Hz | 4 | 0,37 | 1,20 | 55/F | -20/50 | 2300 | 75 |
| TFC0003 | T/FC 400 | 400 | T | 1478 | 380V-50Hz | 4 | 0,55 | 1,60 | 55/F | -20/50 | 3300 | 78 |
| TFC0004 | T/FC 450 | 450 | T | 1454 | 380V-50Hz | 4 | 0,75 | 2,10 | 55/F | -20/50 | 5000 | 70 |
| TFC0005 | T/FC 500 | 500 | T | 1462 | 380V-50Hz | 4 | 1,10 | 2,80 | 55/F | -20/50 | 7000 | 83 |
| TFC0006 | T/FC 560 | 560 | T | 1464 | 380V-50Hz | 4 | 1,50 | 3,70 | 55/F | -20/50 | 9800 | 83 |
| Article | Model | A (mm) |
B (mm) |
C (mm) |
||||||||
| TFC0000 | T/FC 280 T4 0,18 kW | 366 | 412 | 536 | ||||||||
| TFC0001 | T/FC 315 T4 0,25 kW | 400 | 460 | 580 | ||||||||
| TFC0002 | T/FC 355 T4 0,37 kW | 450 | 466 | 630 | ||||||||
| TFC0003 | T/FC 400 T4 0,55 kW | 500 | 526 | 723 | ||||||||
| TFC0004 | T/FC 450 T4 0,75 kW | 550 | 562 | 820 | ||||||||
| TFC0005 | T/FC 500 T4 1,1 kW | 600 | 614 | 900 | ||||||||
| TFC0006 | T/FC 560 T4 1,5 kW | 650 | 620 | 973 | ||||||||
